Products and structures

Tire Protection Chain Structures

Explore visible chain configurations, components and installed examples. Final geometry, dimensions, assembly and fit are confirmed for each order.

Request a recommendationDownload catalogue

Chain structure overview

Tire Protection Chain Designs

These structure names describe visible designs, not fixed model codes. Final selection depends on the tyre, equipment and working conditions.

Dense Square-Pad illustrative tyre protection chain structure Illustrative structure

Dense Square-Pad

Closely spaced square wear pads arranged across the tread.

Diamond-Plate illustrative tyre protection chain structure Illustrative structure

Diamond-Plate

Angled plate-shaped wear elements forming a repeating surface pattern.

Open-Mesh illustrative tyre protection chain structure Illustrative structure

Open-Mesh

Larger visible openings between the wear elements.

Block-Link illustrative tyre protection chain structure Illustrative structure

Block-Link

Raised wear blocks connected through rings.

Wear Elements & Link Details

These photographs show individual wear elements and connecting structures. Final chain configurations are selected for the tyre, equipment and working conditions.

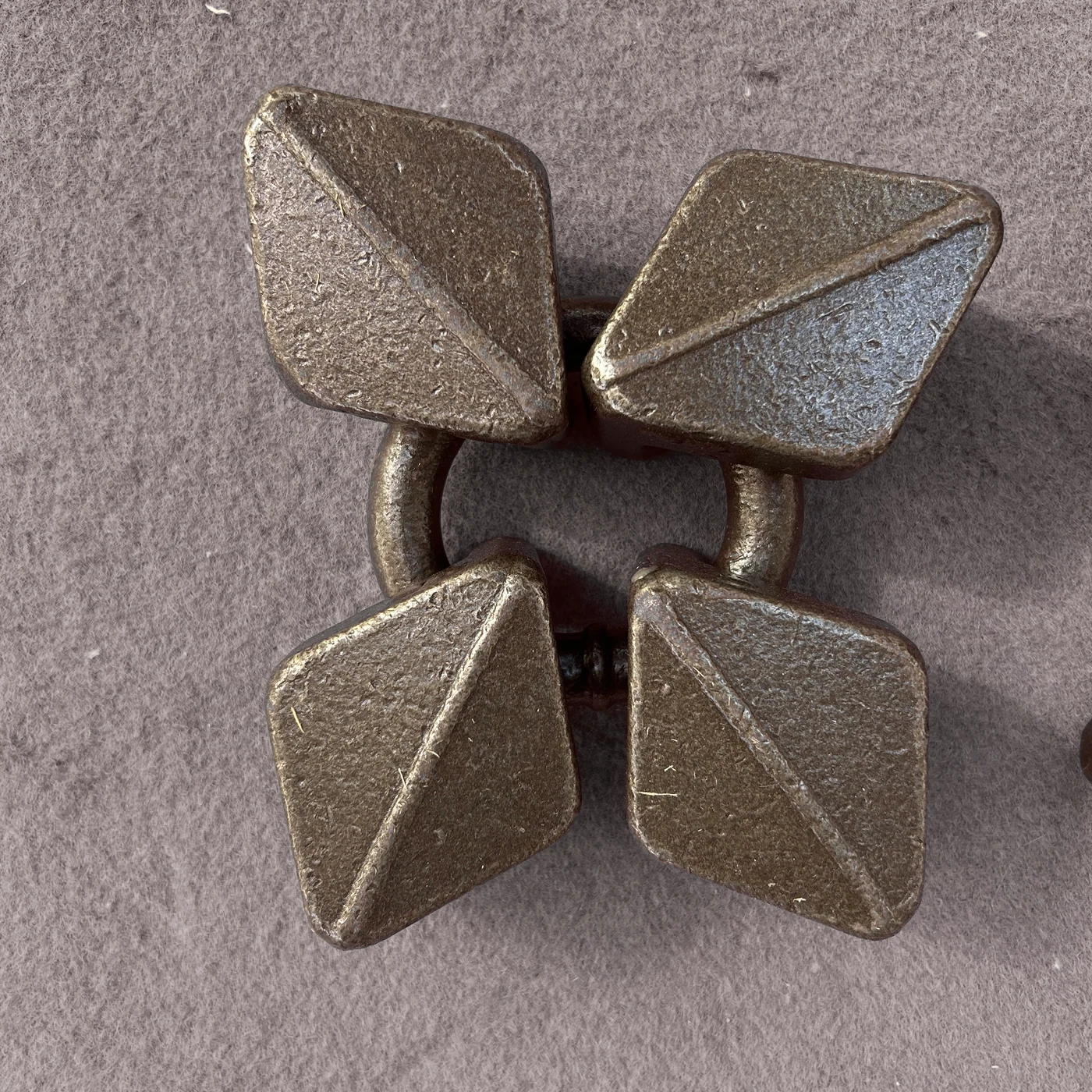

Four broad diamond-shaped metal wear elements connected around a ring

Broad Diamond-Shaped Wear Elements

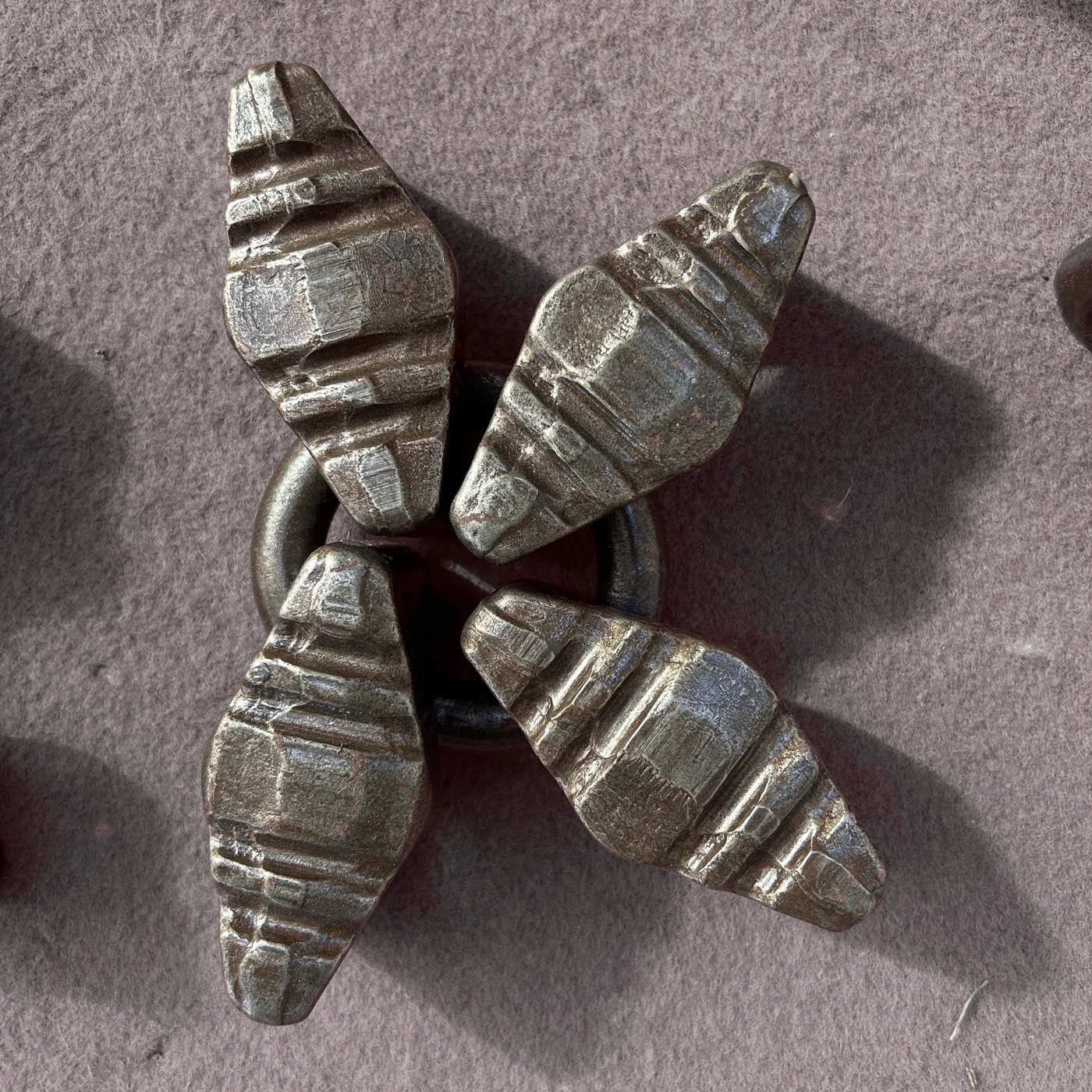

Four elongated ribbed metal wear elements connected around a ring

Elongated Ribbed Wear Elements

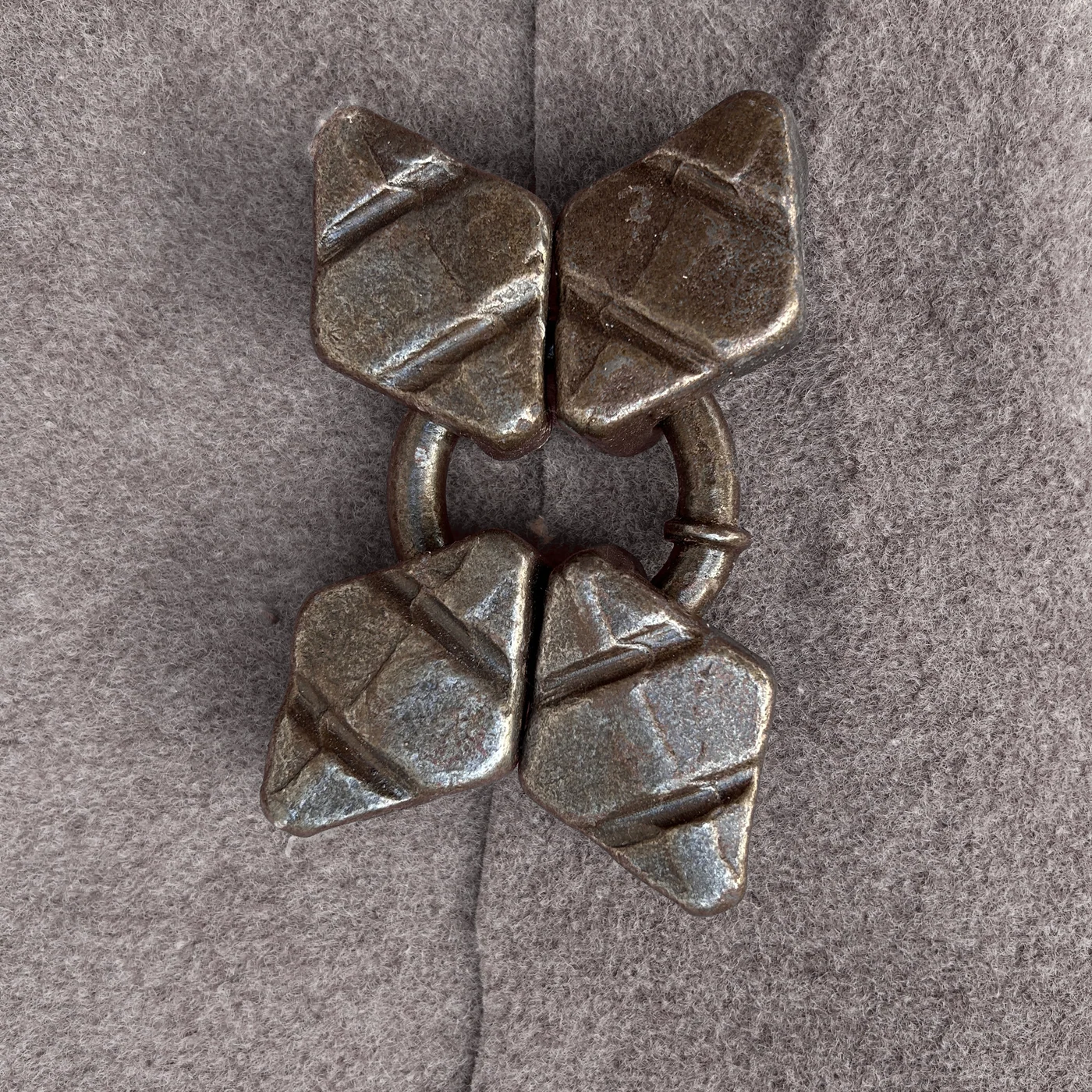

Four broad angled metal wear elements connected around a ring

Broad Angled Wear Elements

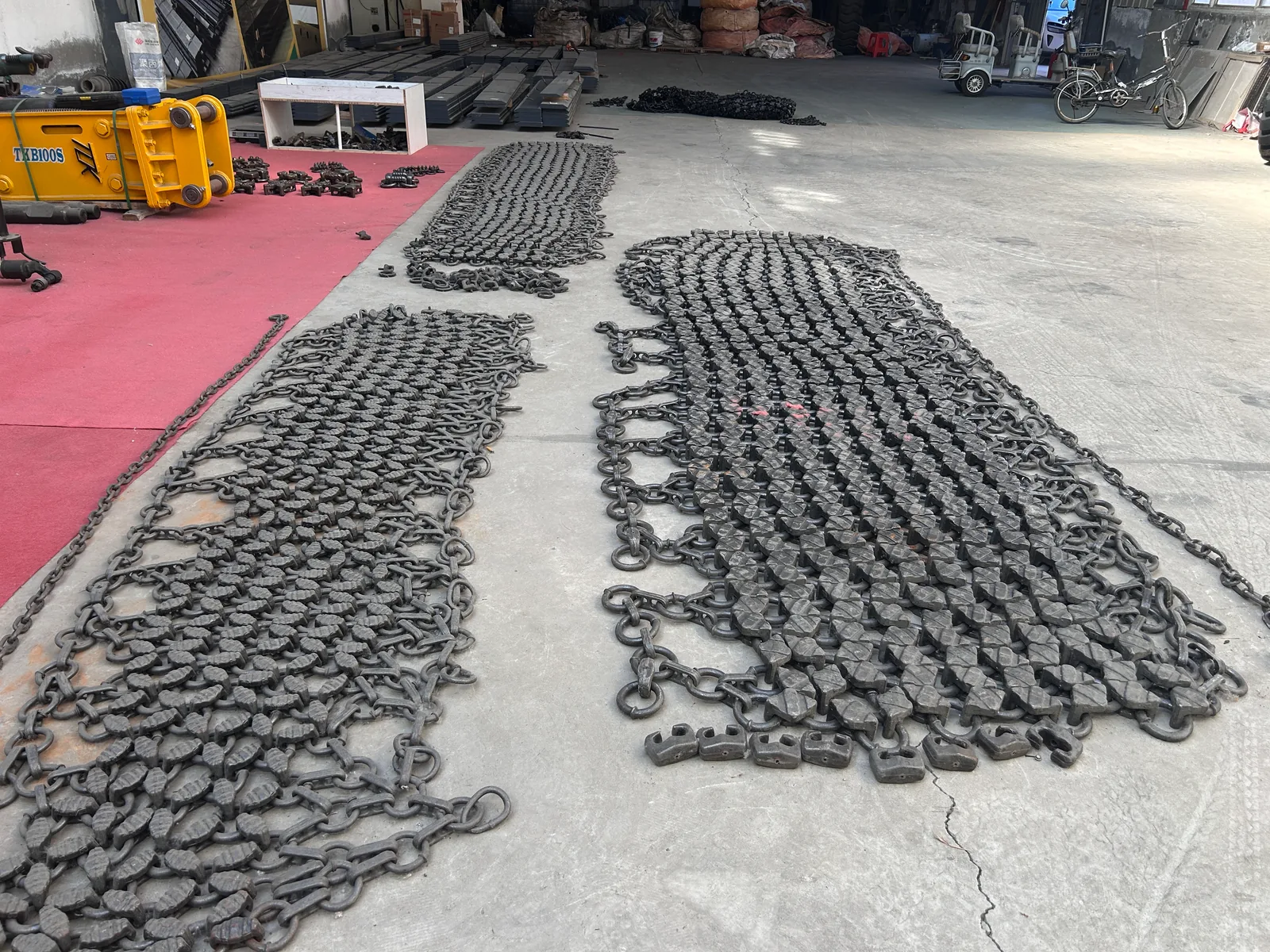

Two lengths of tyre protection chain mesh laid out for inspection

Tread mesh and connection parts

Components must match the confirmed chain assembly

Tread elements, connecting rings, closures and matching repair parts are supplied against the confirmed chain specification. Availability is checked per order.

Spare-part enquirySend a clear chain photograph, a close-up of the part and the required quantity.
Enquire about parts

Component guide

Visible connection and wear elements

Component photographs are illustrative. The final part name and compatibility require confirmation against the actual chain.

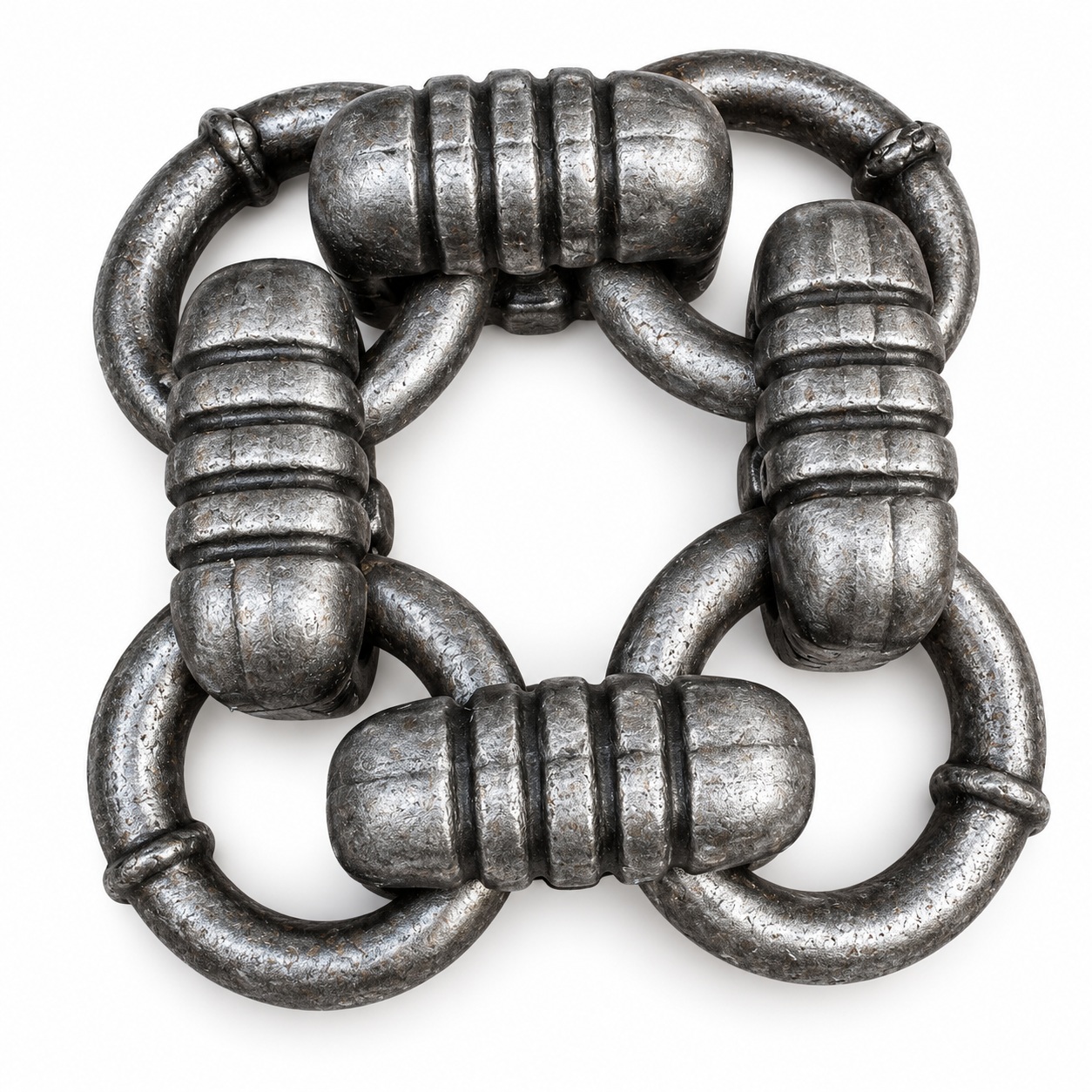

Ribbed unit illustrative component

Ribbed unit

Confirm per order

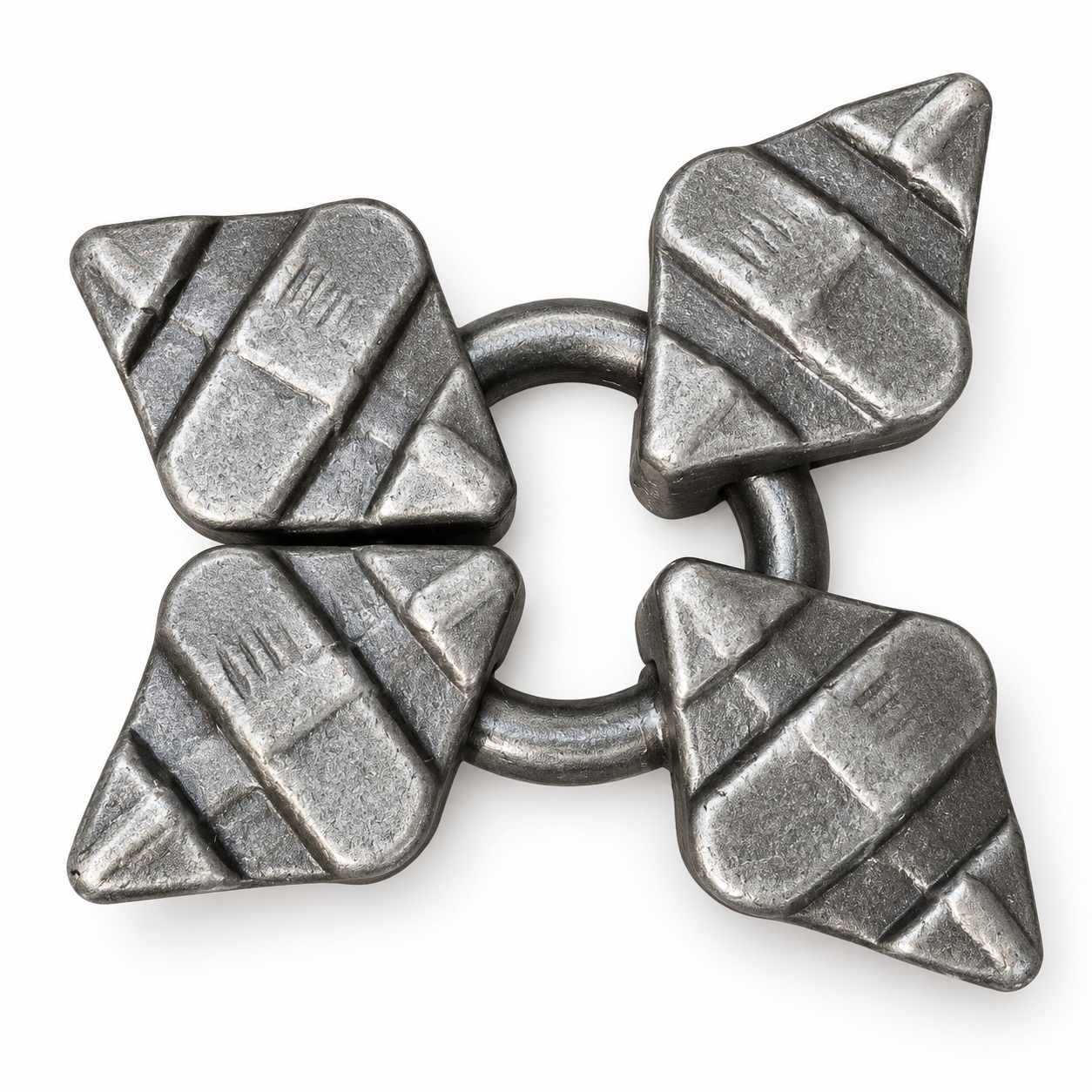

Plate unit illustrative component

Plate unit

Confirm per order

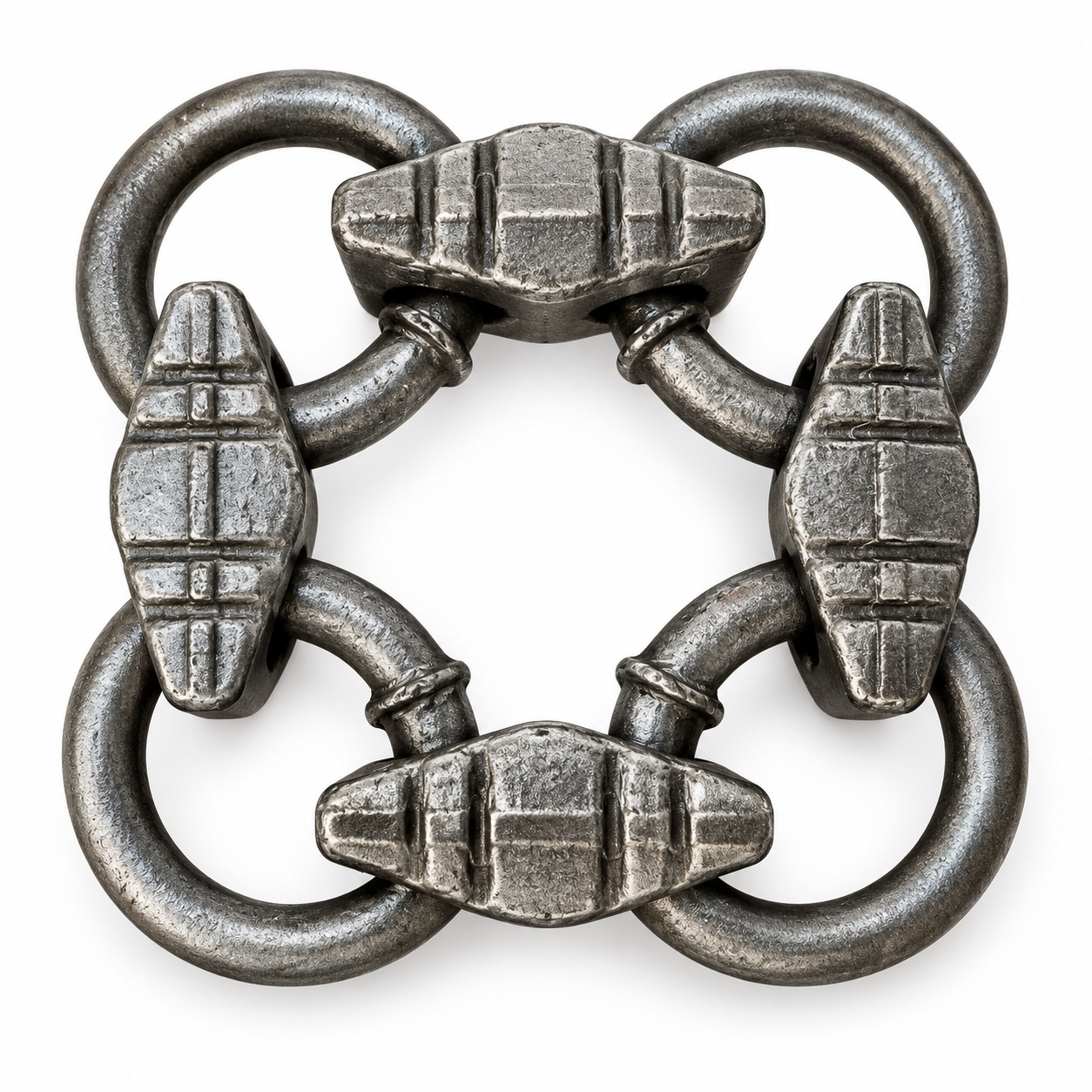

Block unit illustrative component

Block unit

Confirm per order

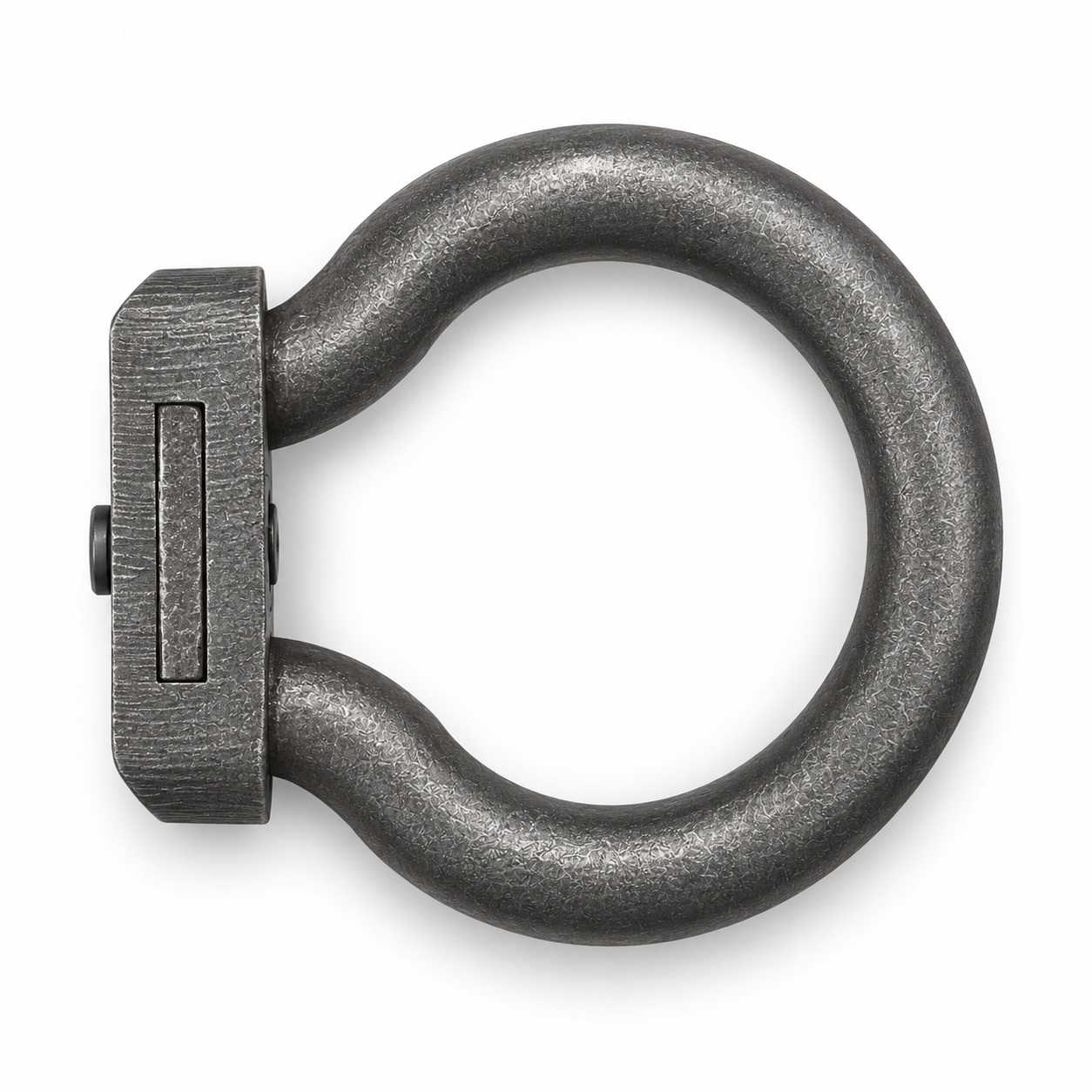

Connecting ring illustrative component

Connecting ring

Confirm per order

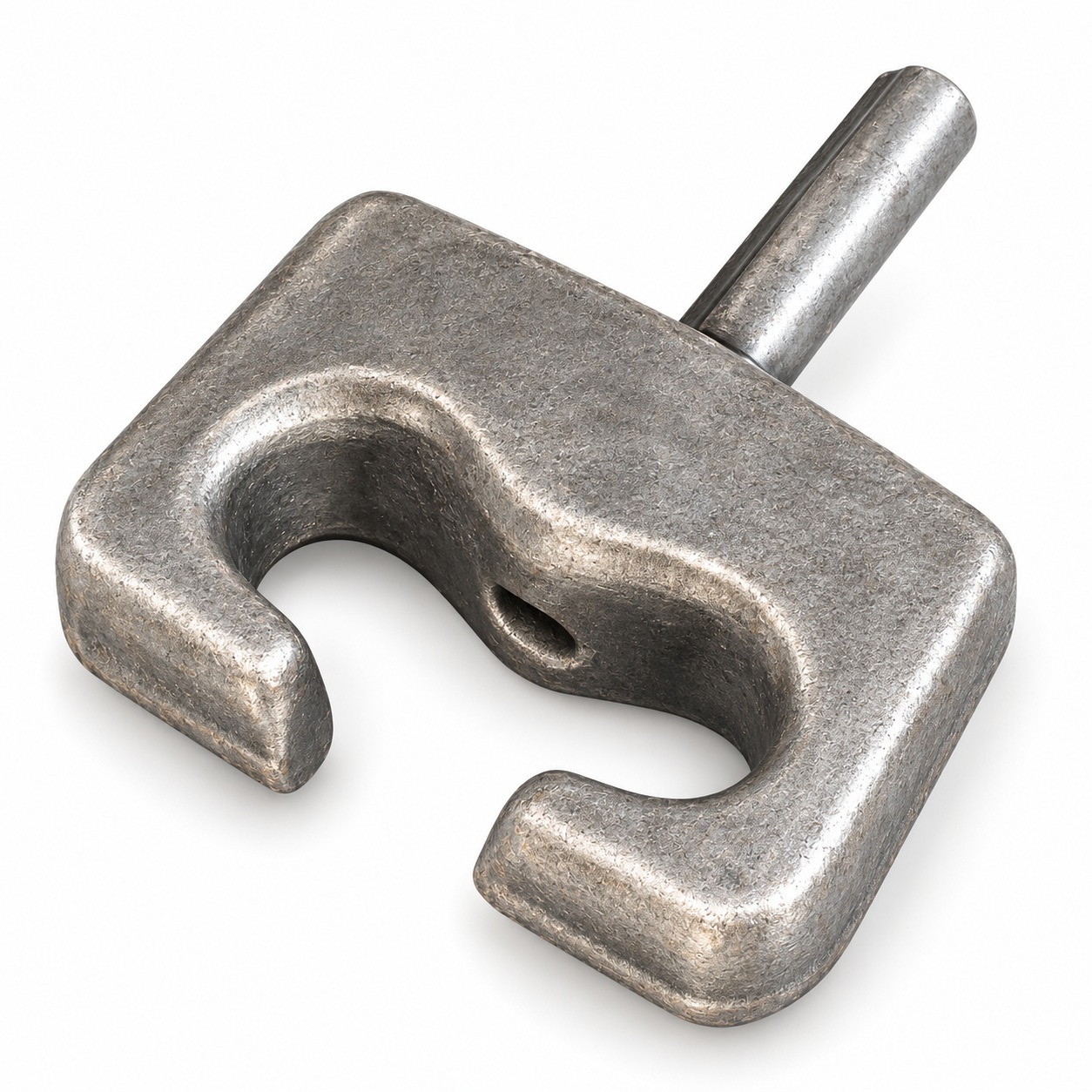

Closure component illustrative component

Closure component

Confirm per order

Installation considerations

Installed Chains & Fitment Considerations

These images illustrate areas to assess during fit review. Final chain coverage and clearance depend on the actual tyre, machine and chain assembly.

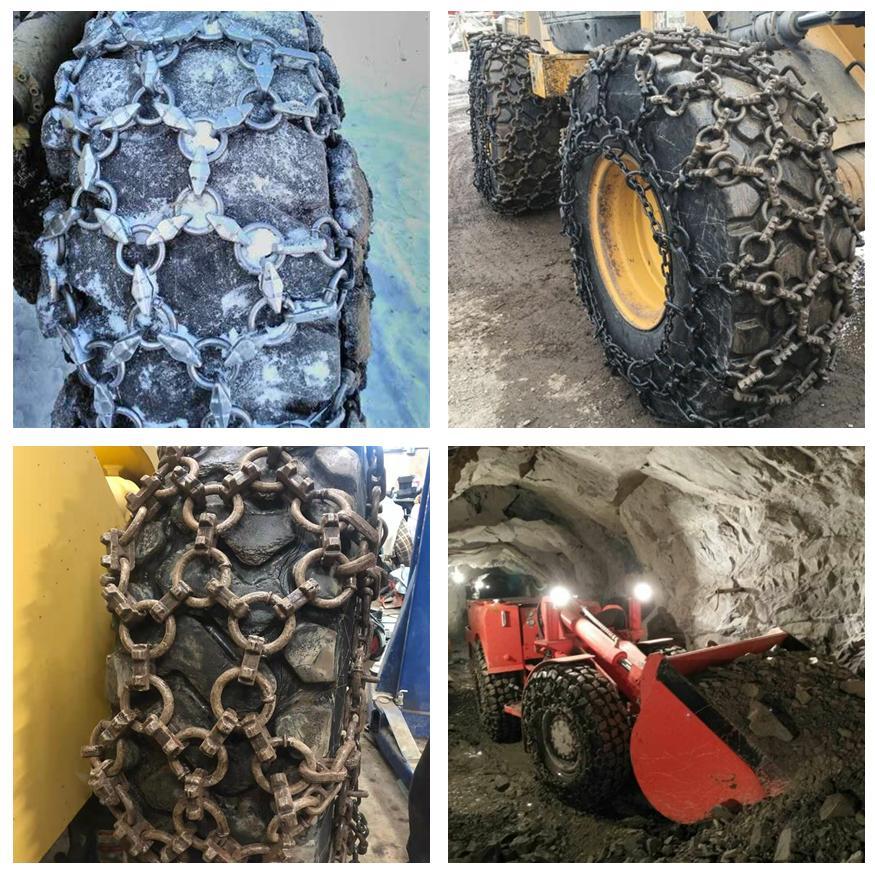

Photographs of tyre protection chains fitted to heavy equipment tyres
Equipment-mounted chain examplesThese photographs show chains fitted to machinery. Check chain position, closures and clearance for the actual machine.

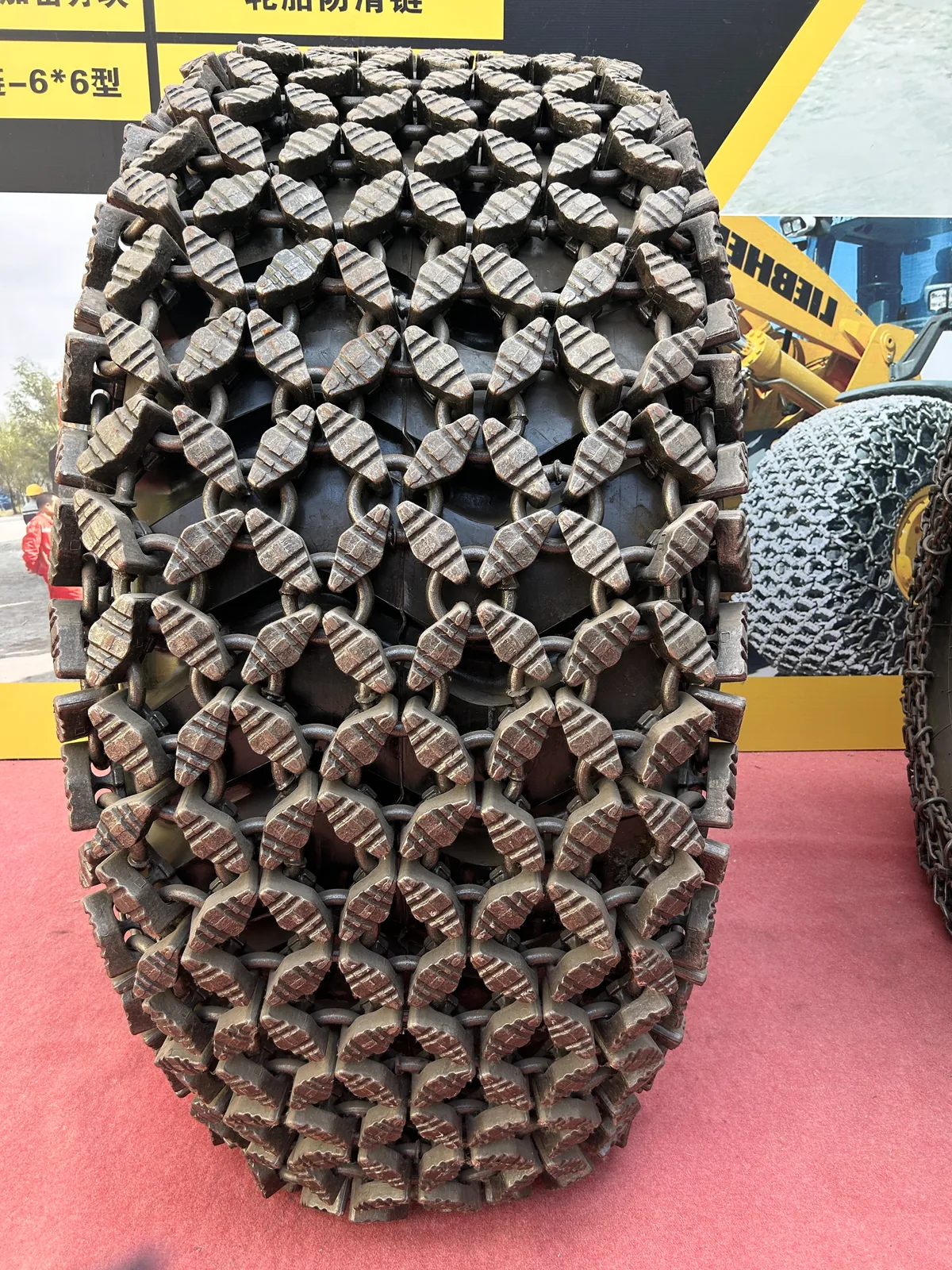

Protection chain fitted to an indoor display tyre, not a jobsite installation
Indoor display tyreThis display photograph shows visible tread coverage only; it is not a jobsite installation example.

Tell us about the tyre and the jobsite

Provide the tyre size, machine model, working environment, quantity and destination. We may request actual measurements and clearance photographs.

Request a quote
